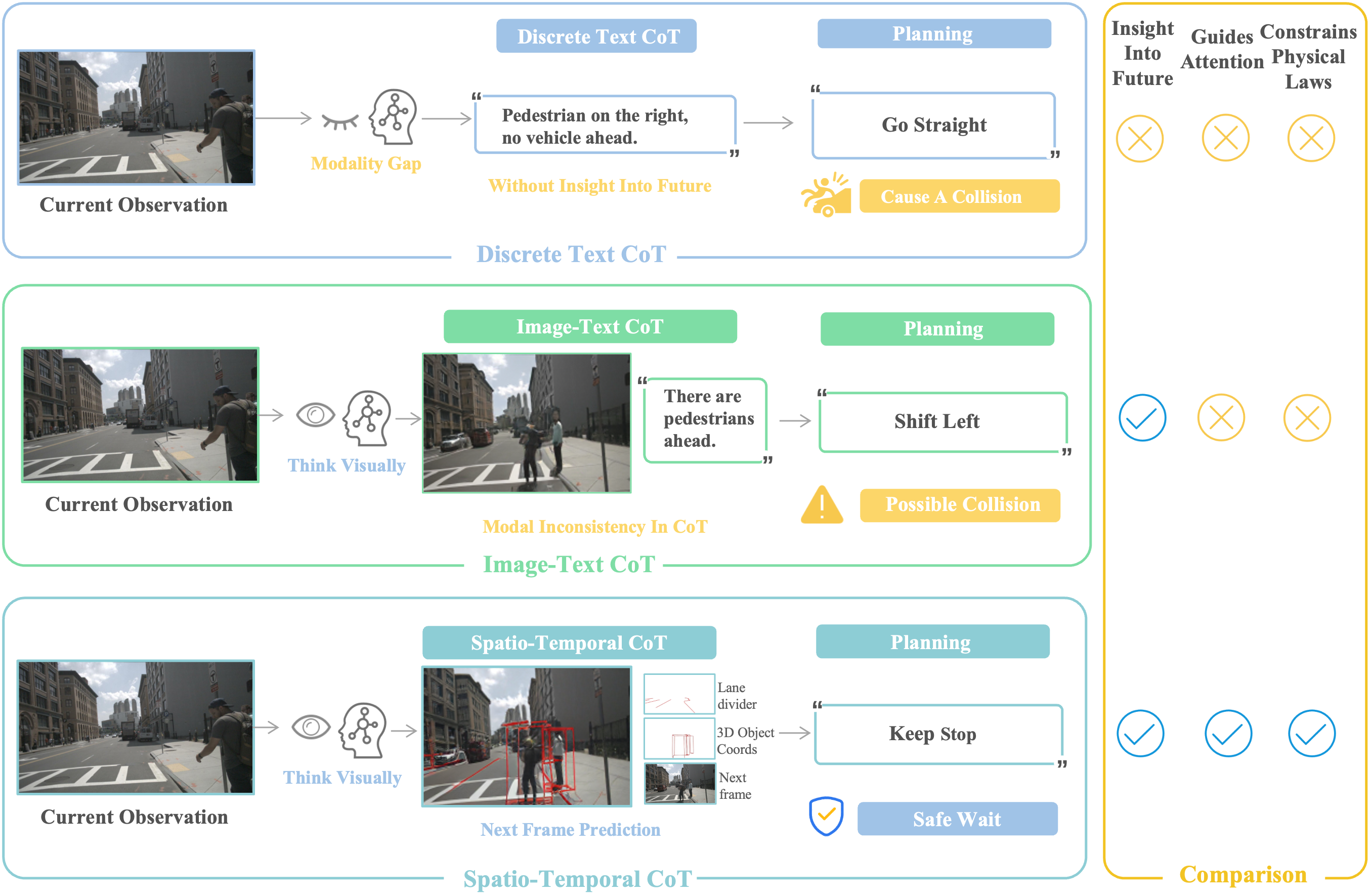

Comparison of different CoT. Text CoT expression provides insufficient information. The modalities between the image-text CoT are inconsistent. The proposed spatio-temporal CoT captures the temporal and spatial relationships in the future.
Visual language models (VLMs) have attracted increasing interest in autonomous driving due to their powerful reasoning capabilities. However, existing VLMs typically utilize discrete text Chain-of-Thought (CoT) tailored to the current scenario, which essentially represents highly abstract and symbolic compression of visual information, potentially leading to spatio-temporal relationship ambiguity and fine-grained information loss. Is autonomous driving better modeled on real-world simulation and imagination than on pure symbolic logic?
In this paper, we propose a spatio-temporal CoT reasoning method that enables models to think visually. First, VLM serves as a world model to generate unified image frame for predicting future world states: where perception results (e.g., lane divider and 3D detection) represent the future spatial relationships, and ordinary future frame represent the temporal evolution relationships. This spatio-temporal CoT then serves as intermediate reasoning steps, enabling the VLM to function as an inverse dynamics model for trajectory planning based on current observations and future predictions. To implement visual generation in VLMs, we propose a unified pretraining paradigm integrating visual generation and understanding, along with a progressive visual CoT enhancing autoregressive image generation. Extensive experimental results demonstrate the effectiveness of the proposed method, advancing autonomous driving towards visual reasoning.
Overview of FSDrive. Taking the currently surround images and task instructions as input, MLLM is trained in the form of next token prediction. MLLM predicts the future spatio-temporal CoT, and then generates trajectory based on the current observation and predicted future.
VLM serves as a world model to generate unified image frame for predicting future world states: where perception results (e.g., lane divider and 3D detection) represent the future spatial relationships, and ordinary future frame represent the temporal evolution relationships. This spatio-temporal CoT then serves as intermediate reasoning steps, enabling the VLM to function as an inverse dynamics model for trajectory planning based on current observations and future predictions.

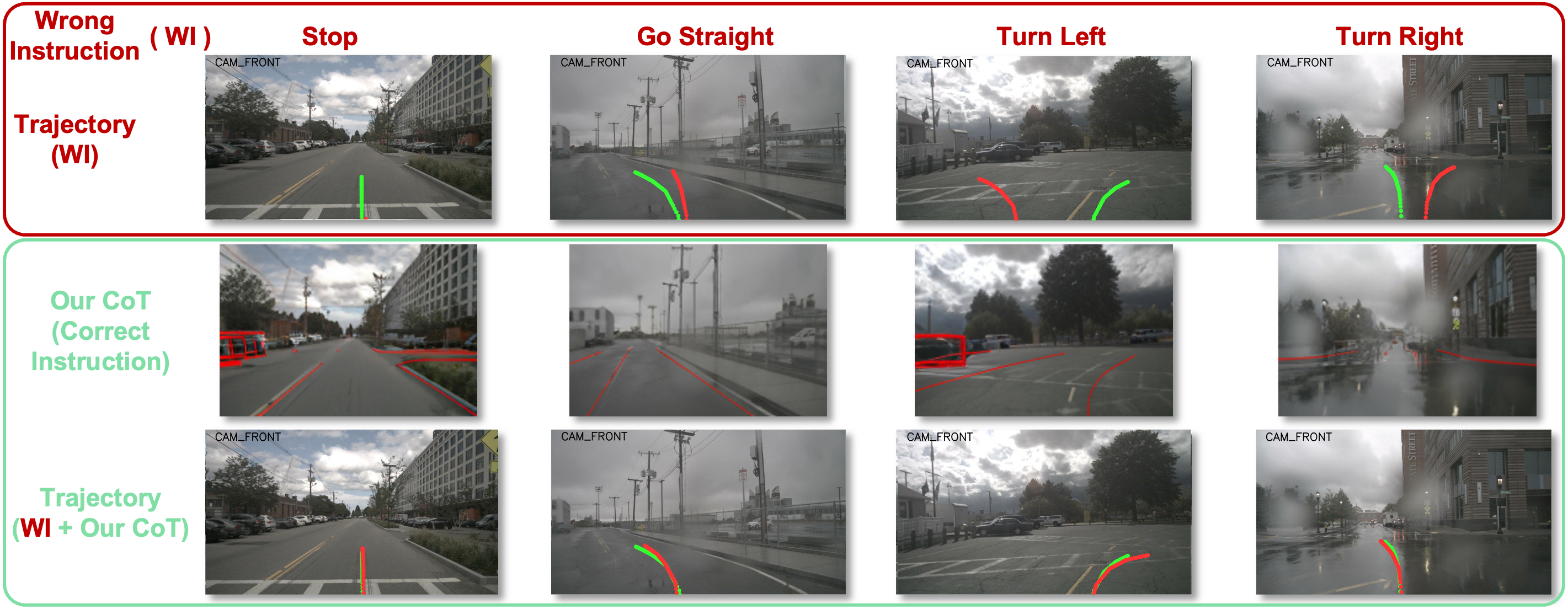

Qualitative analysis of our CoT. The red trajectory is the prediction and the green is the GT. Without spatial-temporal CoT, erroneous navigation inputs caused significant trajectory deviations and potential collisions. Use correct instruction when reasoning our CoT, while still employing wrong instruction for planning. However, FSDrive mitigated instruction errors through observation-based trajectory planning and future prediction, demonstrating its inverse dynamics modeling capability.

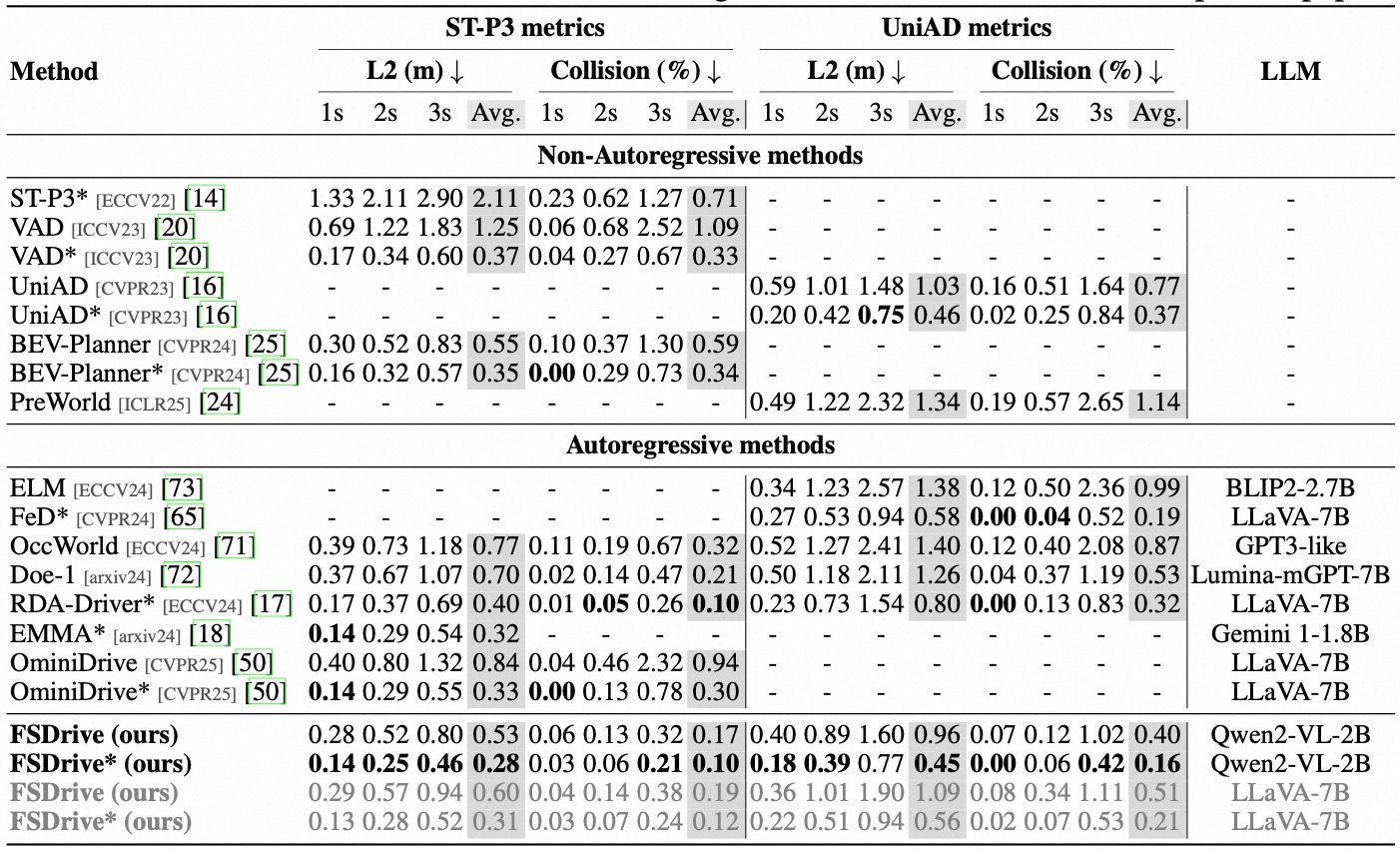

End-to-end trajectory planning experiments on nuScenes. We evaluated the L2 and collision metrics based on the distinct computational methodologies of ST-P3 and UniAD, respectively. * indicates that the ego status is additionally used. VAD and UniAD results are derived from BEV-Planner, while the remaining results are sourced from their respective papers.
If you find our work useful in your research, please cite our paper:
@article{zeng2025FSDrive,
title={FutureSightDrive: Thinking Visually with Spatio-Temporal CoT for Autonomous Driving},
author={Shuang Zeng and Xinyuan Chang and Mengwei Xie and Xinran Liu and Yifan Bai and Zheng Pan and Mu Xu and Xing Wei},
journal={arXiv preprint arXiv:2505.17685},
year={2025}
}
